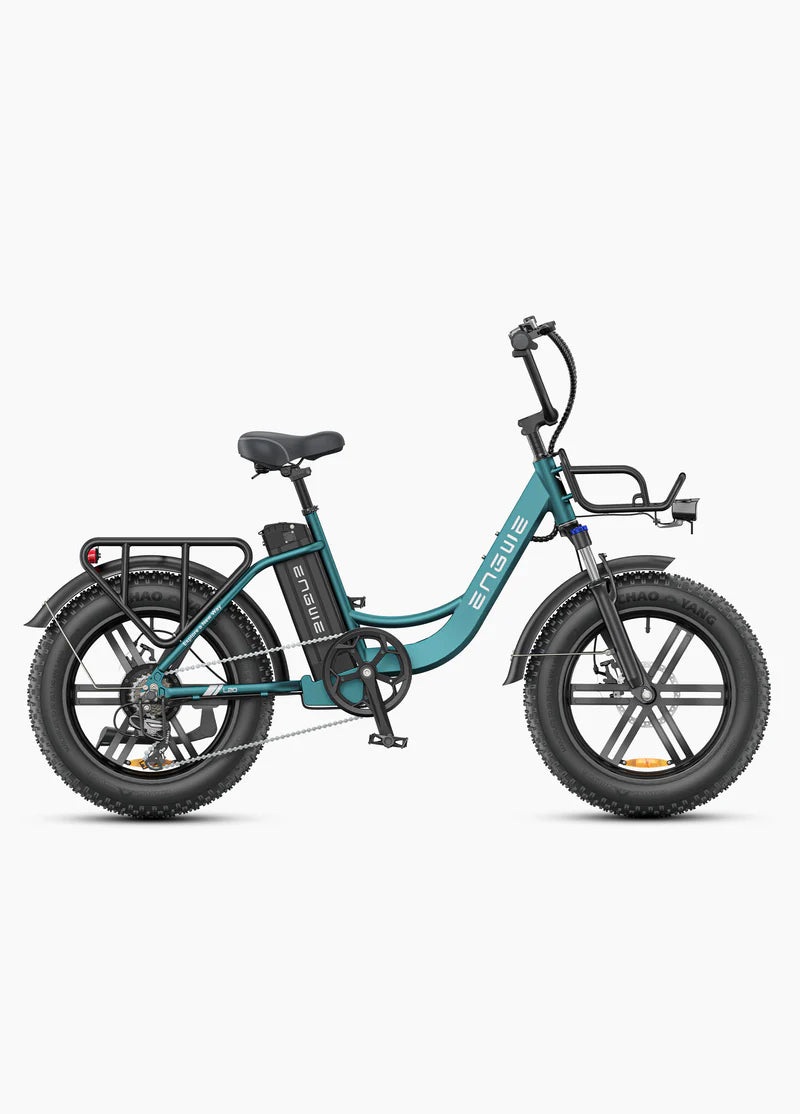

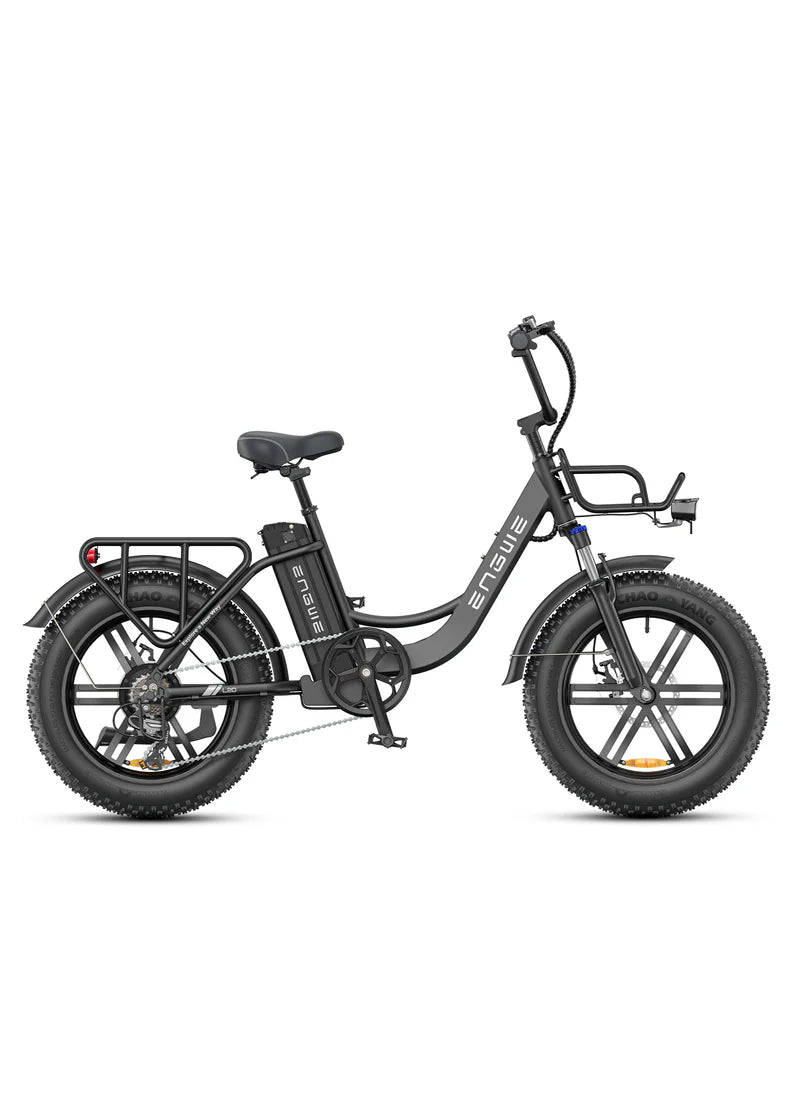

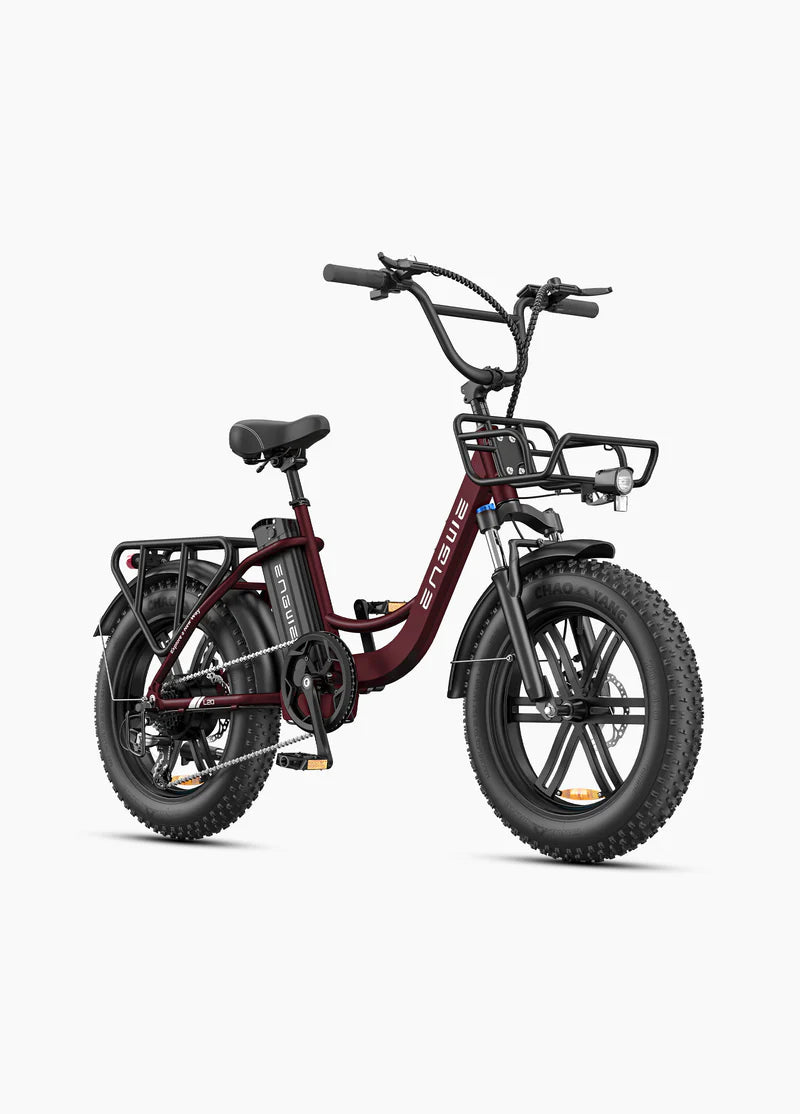

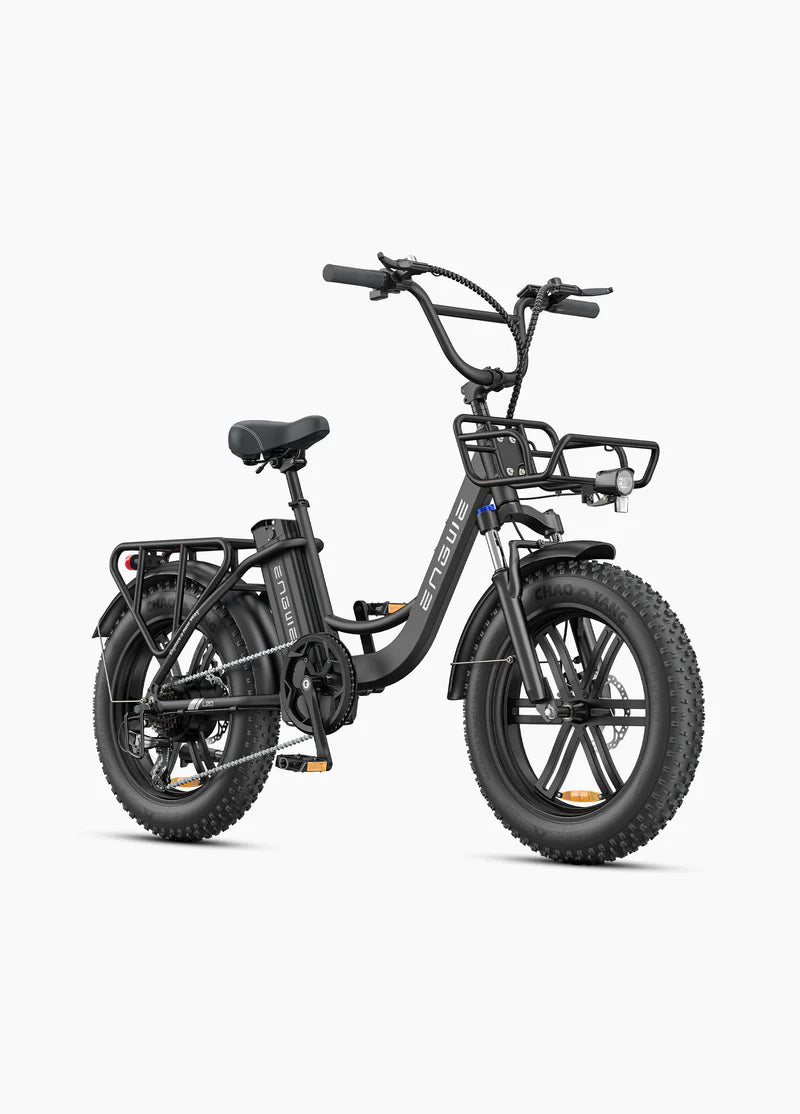

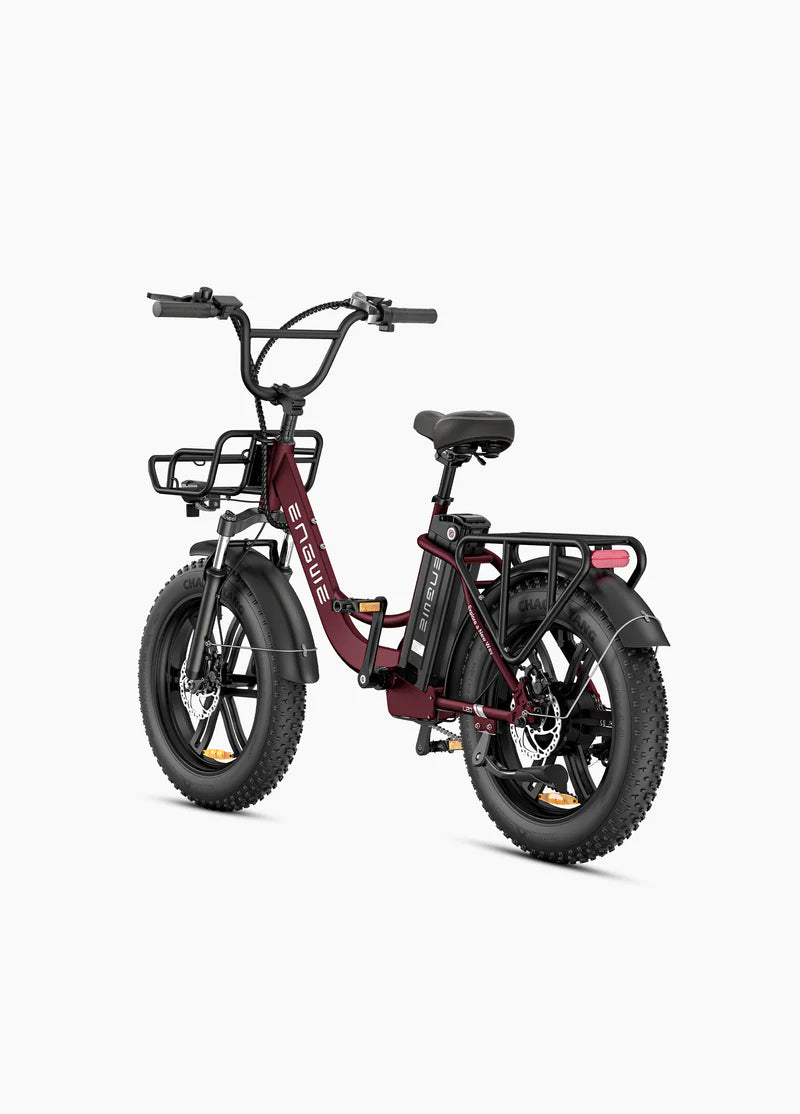

L20 Boost
PRE ORDER NOW FOR MID/END AUGUST DELIVERY
4.0' terrain tires and utility power — For cargo and all terrains.

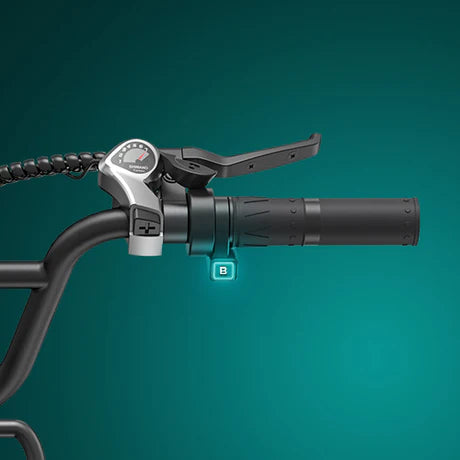

How Boost Button Works
1. The boost button on an e-bike acts as an enhanced level of pedal assist, providing a temporary boost in power only when the rider is pedaling.
2. This feature helps with quick acceleration and hill climbing while maintaining legal status, as it requires pedaling and does not allow continuous motor control like a throttle.
3. This distinction ensures safety and aligns with regulations, differentiating e-bikes from motorized vehicles.
4. The Boost Button provides a power boost for up to one minute, ideal for quick acceleration. After each use, it must be pressed again for continued activation. This design ensures safe and controlled performance on every ride.
| Rider Height | 5.0 (ft) -6.0 (ft) |
| Payload Capacity | 120 kg (264lbs) |
| Package Dimensions (LWH) | 148.5*32*78 cm |
| A--Handlebar Height | 115 cm |
| B--Total Length | 174.3 cm |
| C--Reach | 37 cm |
| D--Standover Height | 43.3 cm |
| E--Wheelbase | 115.7 cm |
| F--Minimum Saddle Height | 82 cm |
| G--Maximum Saddle Height | 94 cm |
Please note: There may be a difference of 0~5 cm between measured and actual data.
| Material | 6061 Aluminum Alloy |
| Motor | 250W Brushless Motor |
| Max Torque | 75 N.m |

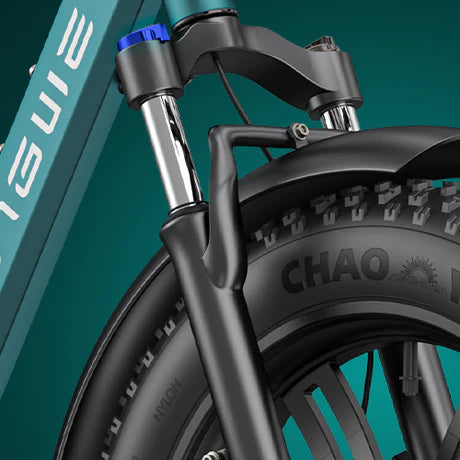

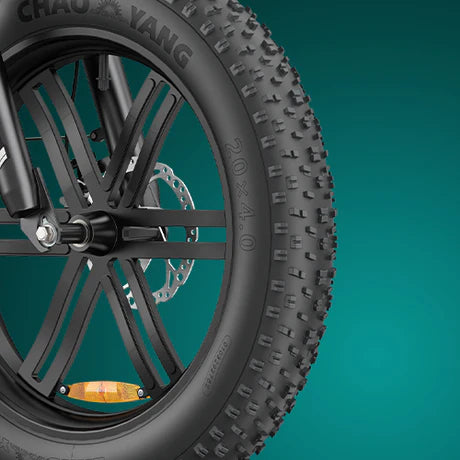

| Tires | 20 x 4.0 Fat Tires |

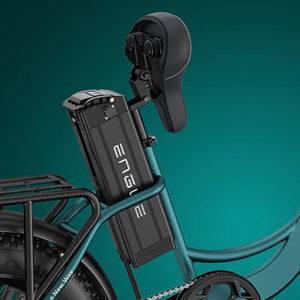

| Battery | 48V13Ah Lithium-Ion Battery |
| Speed | 25 km/h (No Throttle) |
| Max Mileage | 126 km (The actual distance will vary due to rider weight and road conditions) |
| Charging Time | About 6.5H |
| Maximum Climbing Degree | 10° |

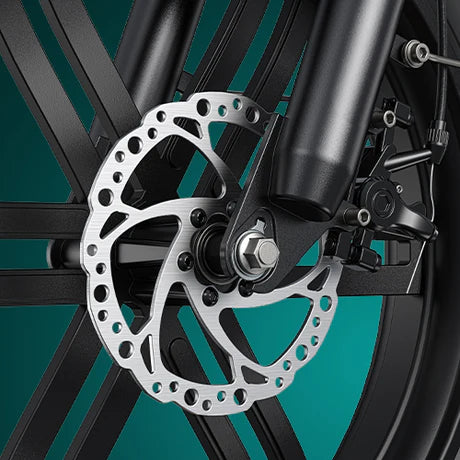

| Brake | 160 mm Front & Rear Disc Mechanical Brakes |

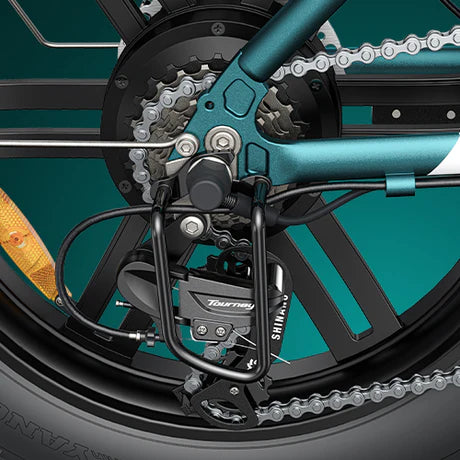

| Transmission System | Shimano 7 Gears |

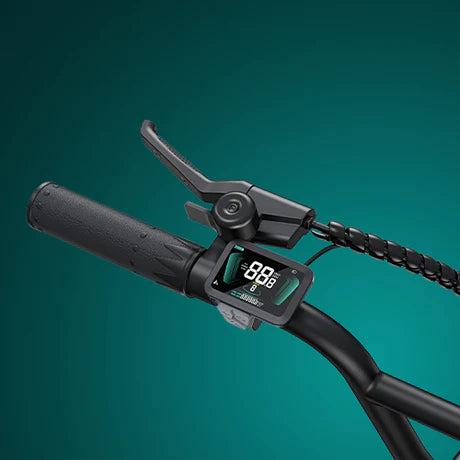

| Display | LCD Display |
| Bike Weight | 74.8 lbs (34 kg) |
| Gross Weight |
|
